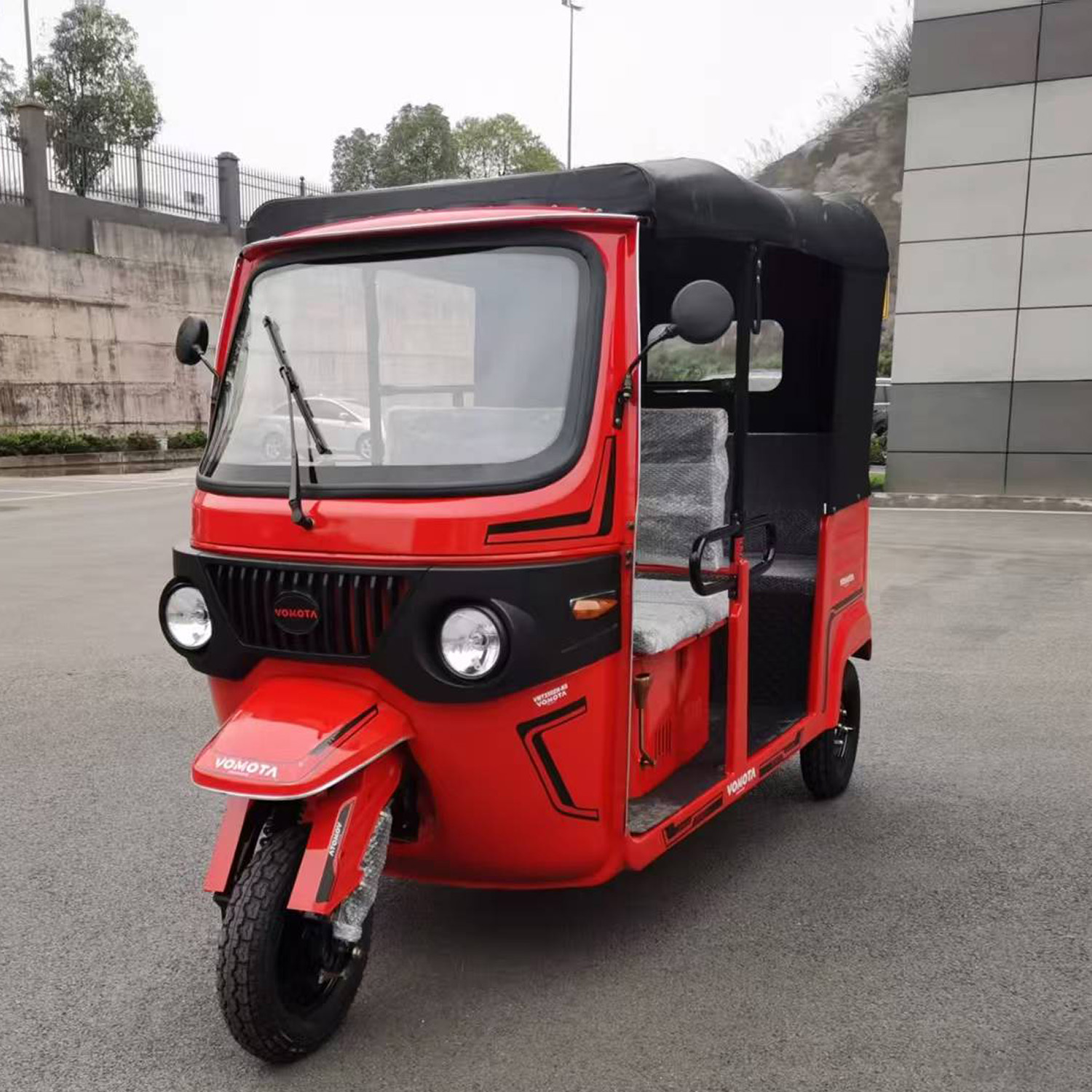

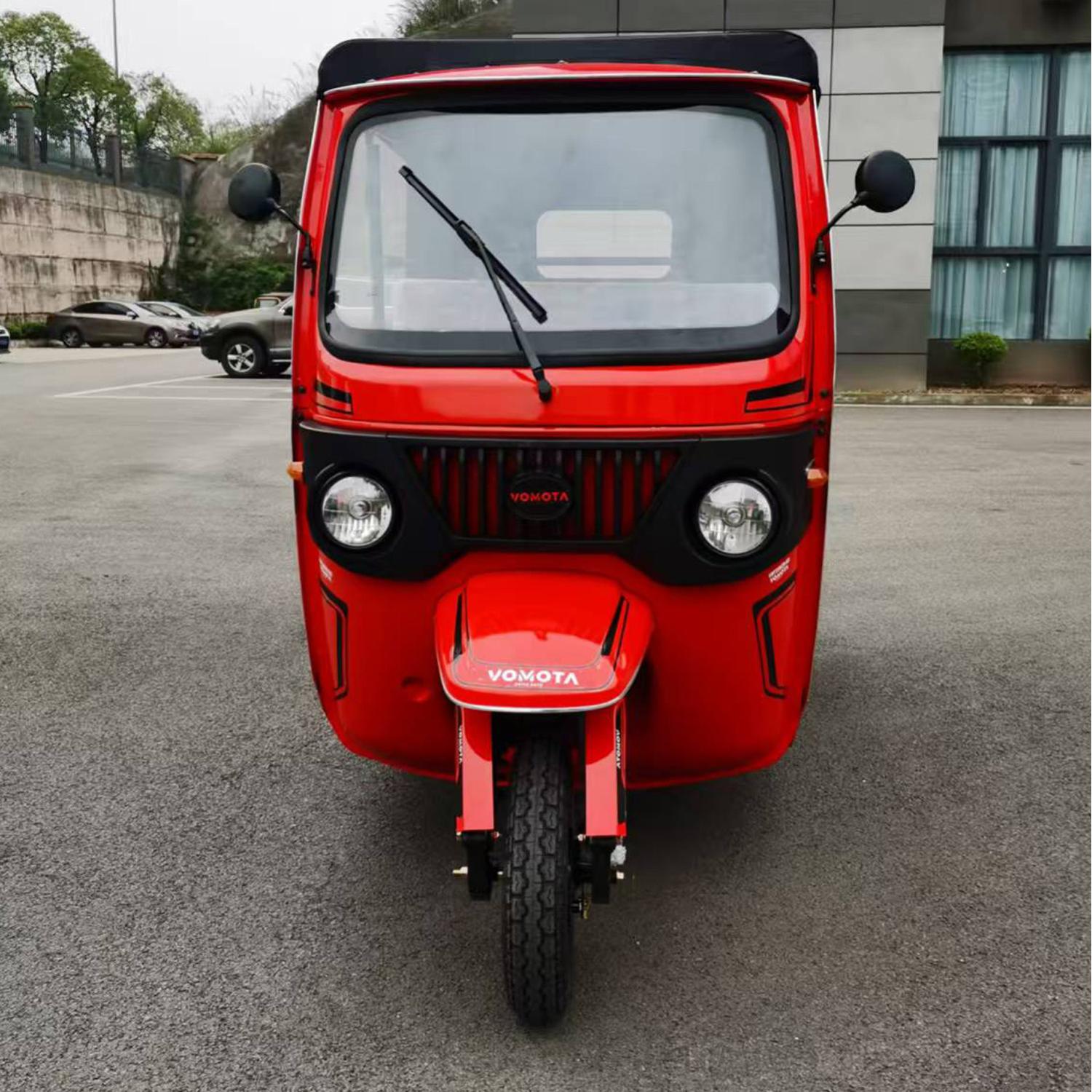

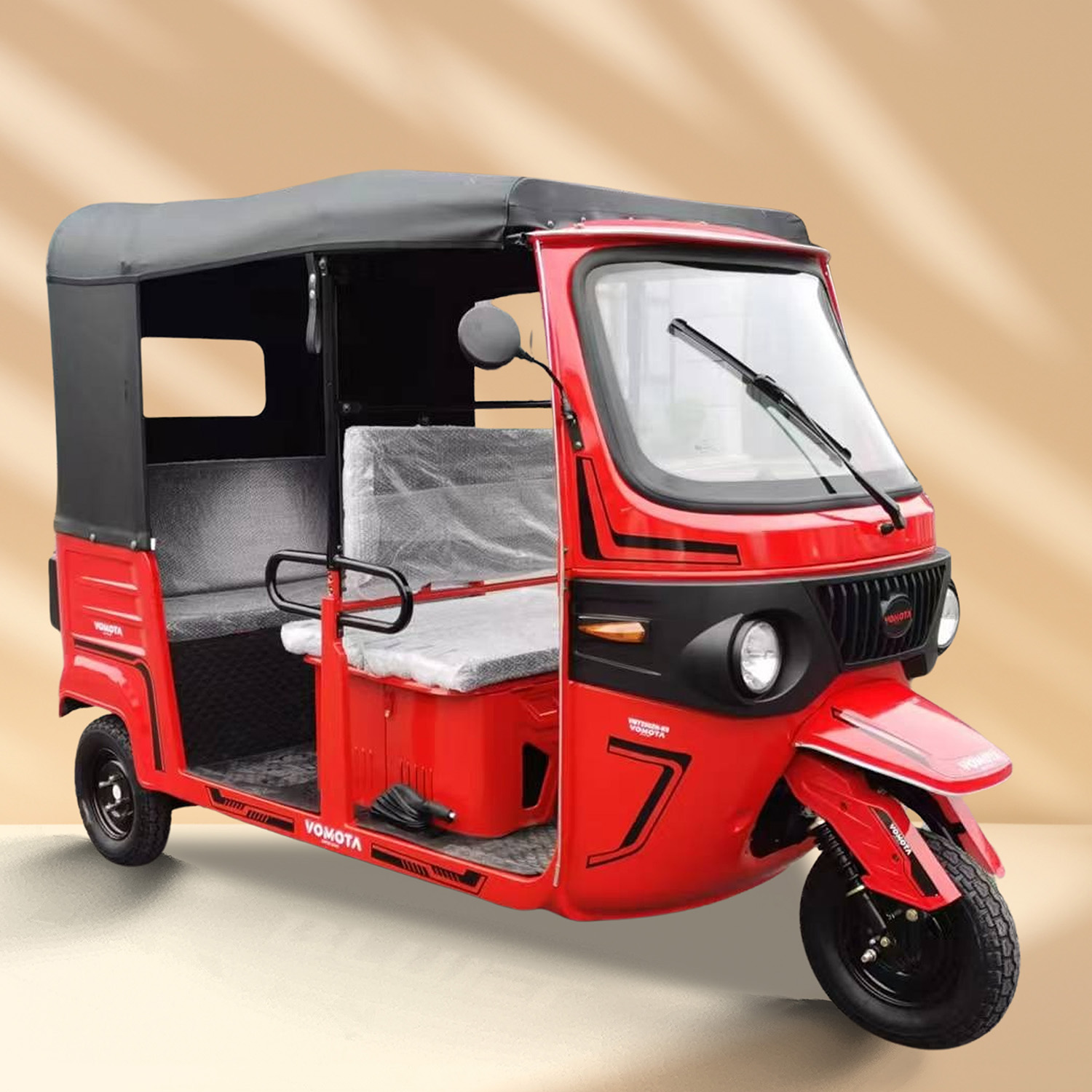

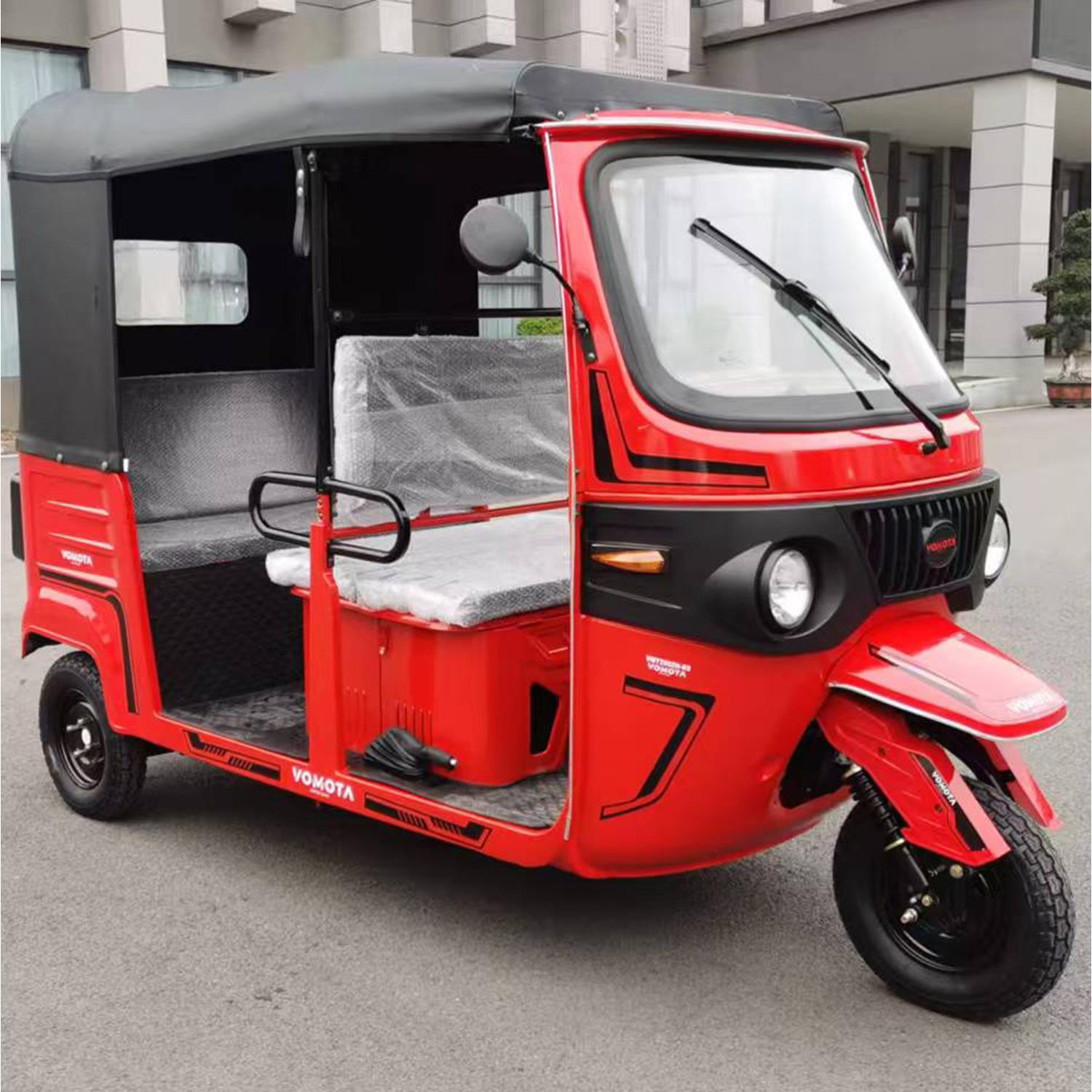

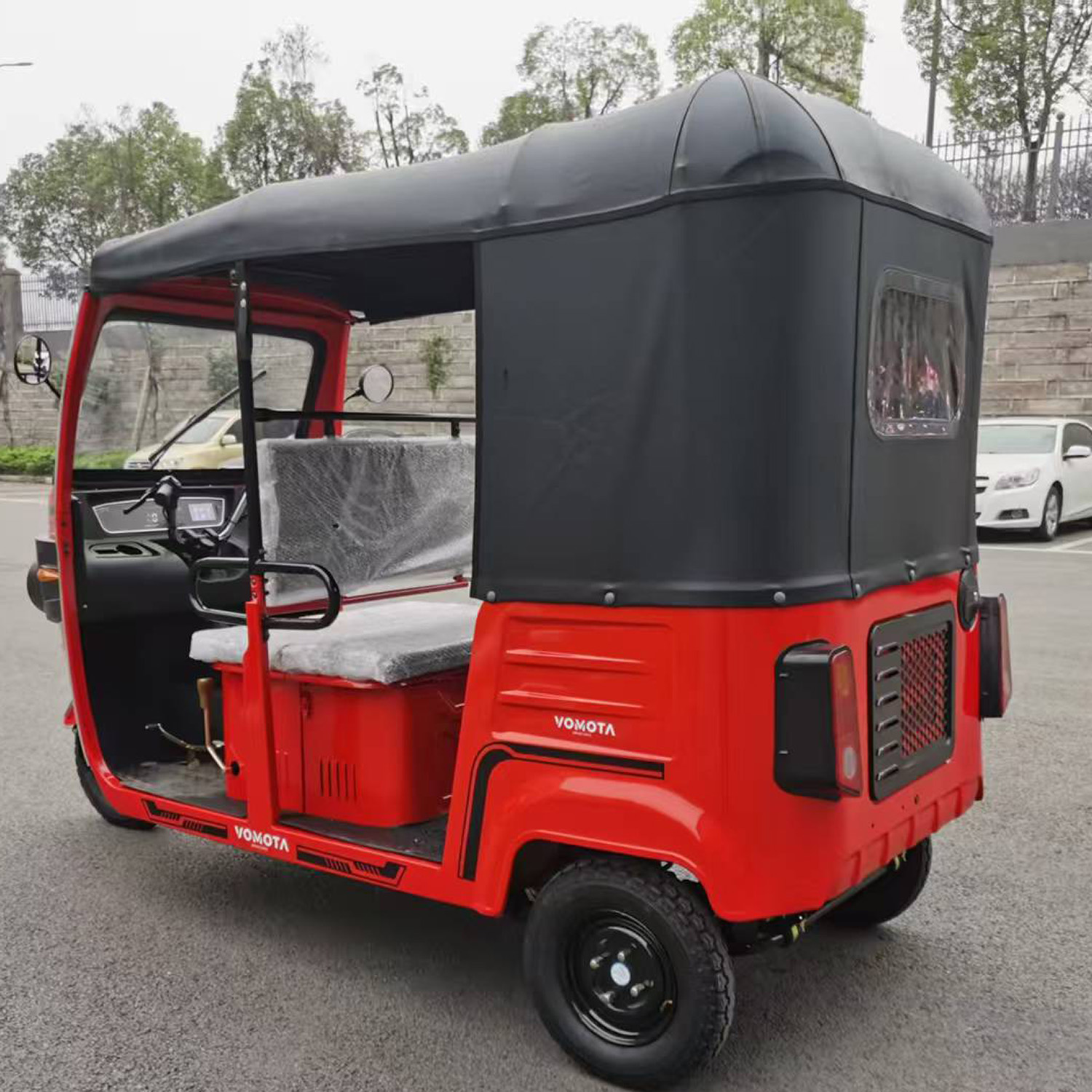

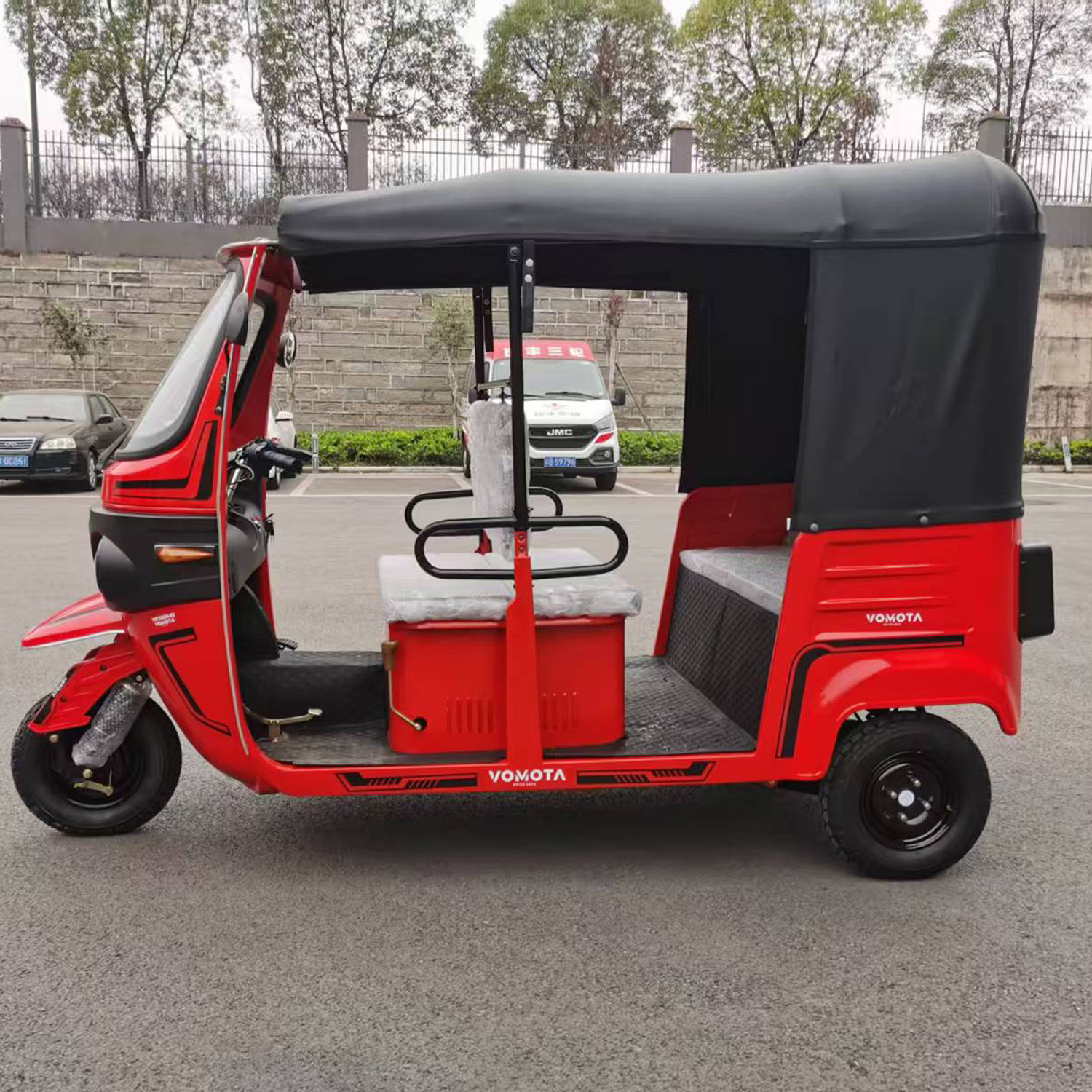

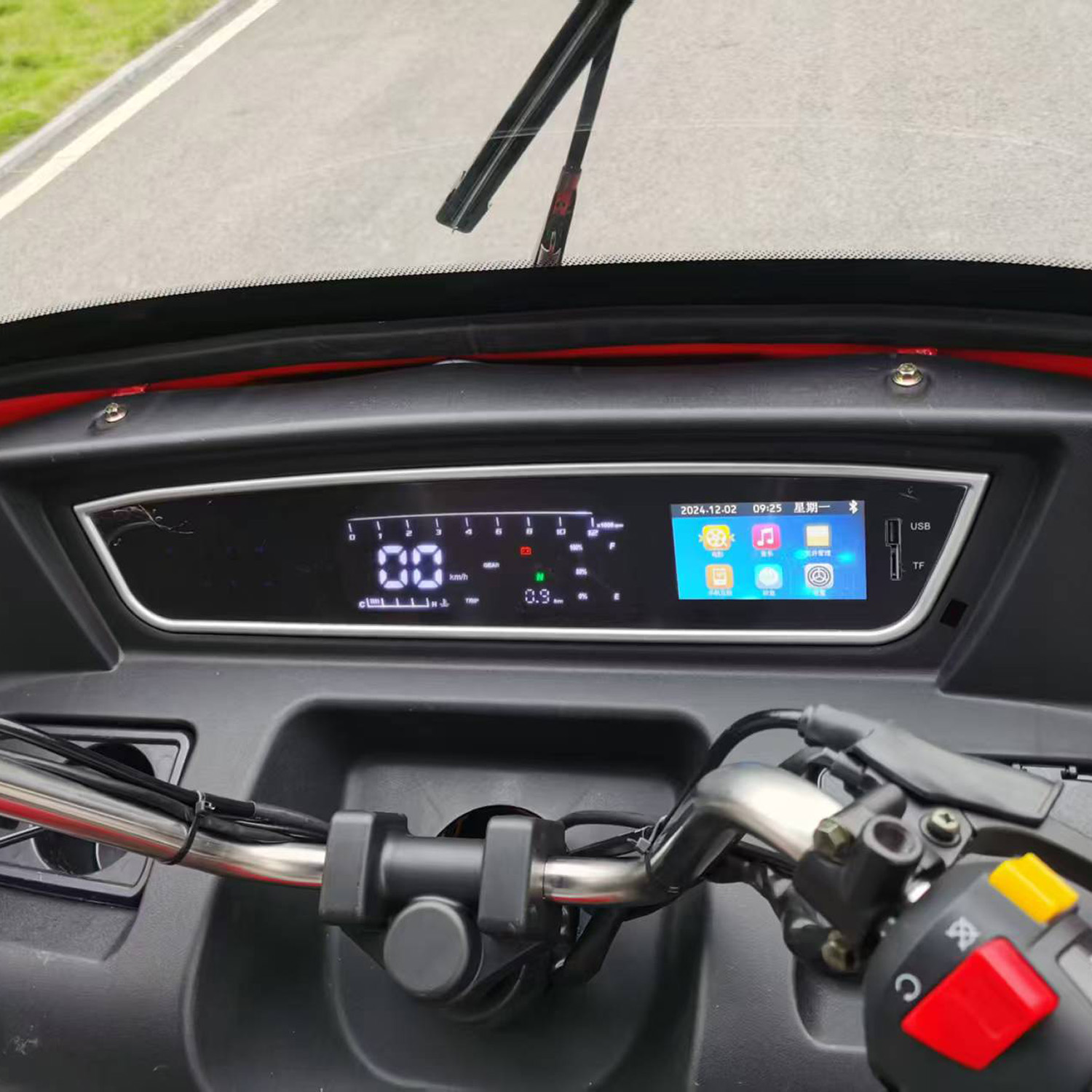

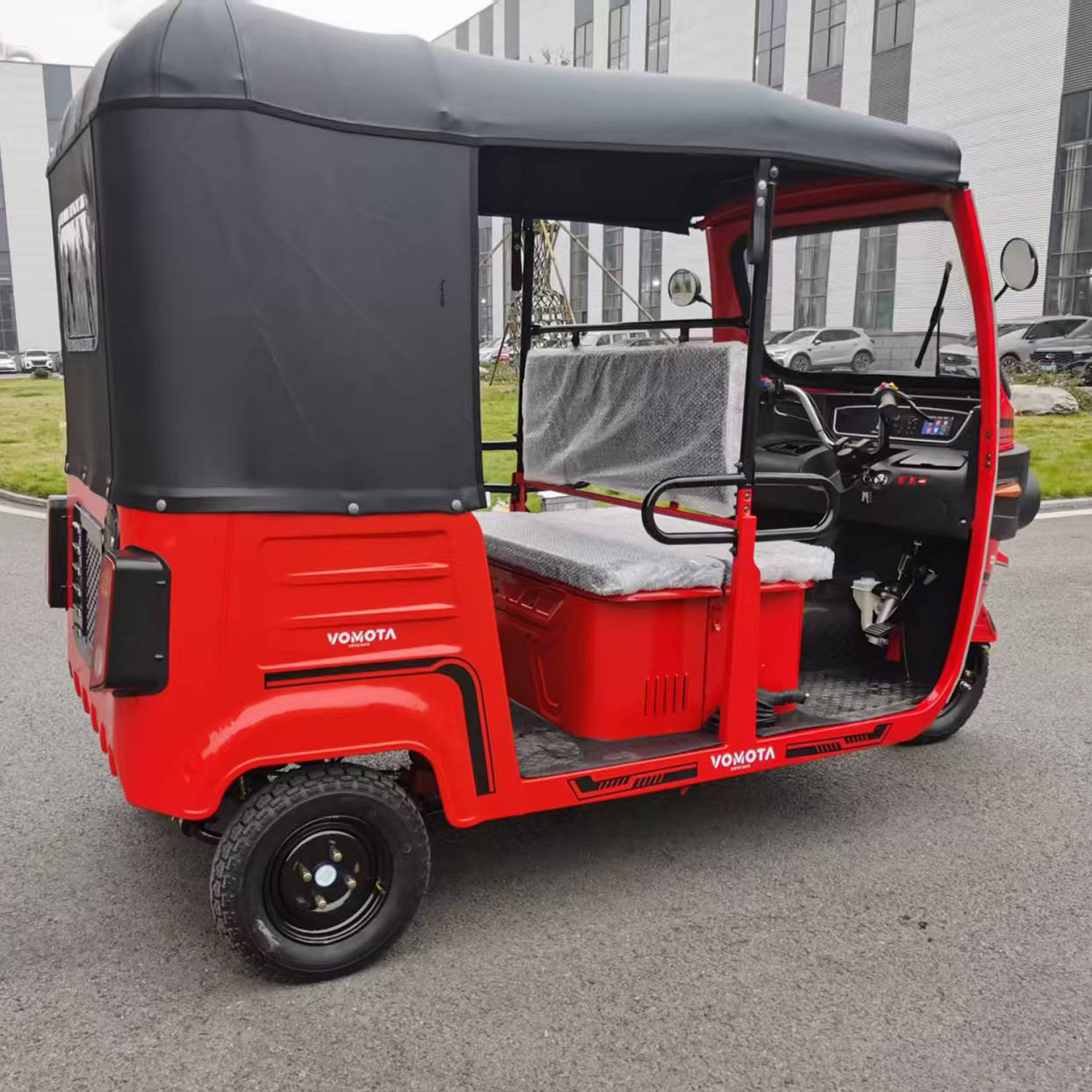

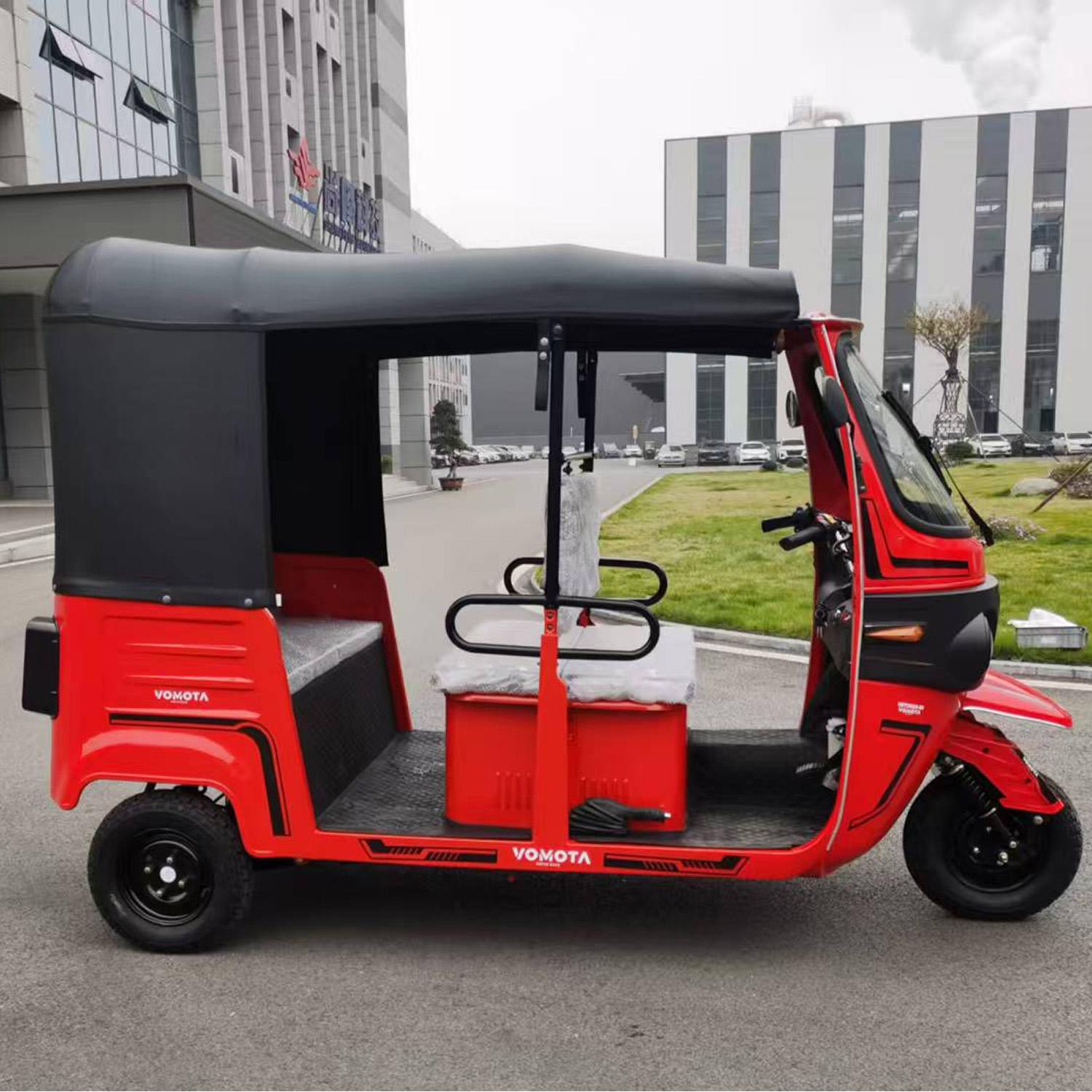

K8 200cc
$1,699.00
Price drop reminder
- SKU： 3wheek8
- Product Code: K8 200cc
- Availability: 1000
If the price of the product is reduced within 30 days, we will notify you via email, SMS and mobile client~
If the goods arrive within 30 days, we will notify you via email, SMS and mobile client~
| ENGINE SPECIFICATION | |||||||||
| motor | CG200CC water cooling，Single cylinder，4-stroke，incined,hand clutch,downward camshaft ZONGSHEN BRAND | ||||||||
| Dimension | 337*382*444mm | ||||||||
| Bore and stroke | 63.5*62.2mm | ||||||||
| Displacement | 197.0ml | ||||||||
| Maximum power | 10.3KW/7500r/min | ||||||||
| Maximum torque | 14.2N.m/6000r/min | ||||||||
| Compression ratio | 10.2:1 | ||||||||
| Idle speed | 1500r/min | ||||||||
| Fuel Consumption | ≤354g/Kw.h | ||||||||
| Lubrication Methoerd | Force-feed＆splash | ||||||||
| lubrication Stamdard | SJ20W/50 | ||||||||
| Lubricating oil capacity | 1400ml | ||||||||
| Fueltype | Gasoline | ||||||||
| TRICYCLE SPECIFICATION | |||||||||
| Chasis | 40*60 keel，40*60 frame | ||||||||
| Ignition Type | C.D.I | ||||||||
| Starter System | Electric start | ||||||||
| Transmission | 5 forward+1 reverse gear | ||||||||
| Overall Size(mm) | 2900*1400*1900mm | ||||||||
| Curb Weight(kg) | 370kg | ||||||||
| Wheel Base(mm) | 2230mm | ||||||||
| Wheel Track(mm) | 1120mm | ||||||||
| Tyre,Front | 4.00-10 | ||||||||
| Tyre,Rear tyre | 4.00-10 | ||||||||
| Tyre,Spare wheel | 4.00-10 | ||||||||
| Battery | 12V28Ah | ||||||||
| Front Shock | double arms style | ||||||||

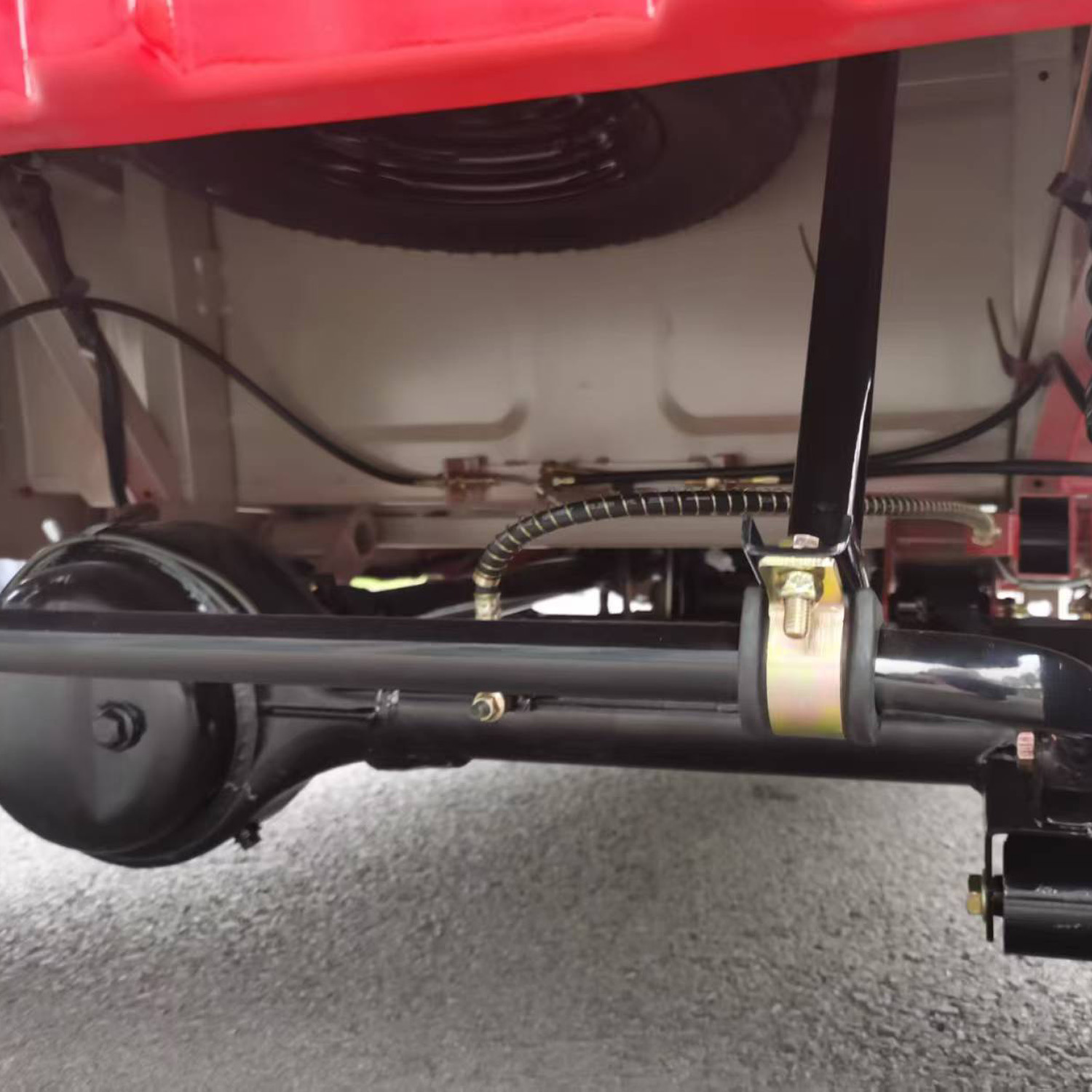

| Rear Axle | 4 holes， Auto rear axle,180drum | ||||||||
| Gear ratio | 10:35 | ||||||||
| Armor Plate | 8 steel plates rear suspension | ||||||||
| Brake Way | front mechanic brake，rear oil brake | ||||||||
| Tool Box | small | ||||||||
| Passengers | 6 driver | ||||||||
| Max.Load Capacity | 600kg～800kg | ||||||||
| Max.Speed | ≤60Km/h | ||||||||
| Tank VOlume | 15L | ||||||||
| Optional Color | red/blue/orange/yellow/black/gree/white | ||||||||
| LOADING QUANTITY"ATION | |||||||||
| CONDITION | 1*24HQ CONTAINER | ||||||||
| SKD | 24 Units | ||||||||
