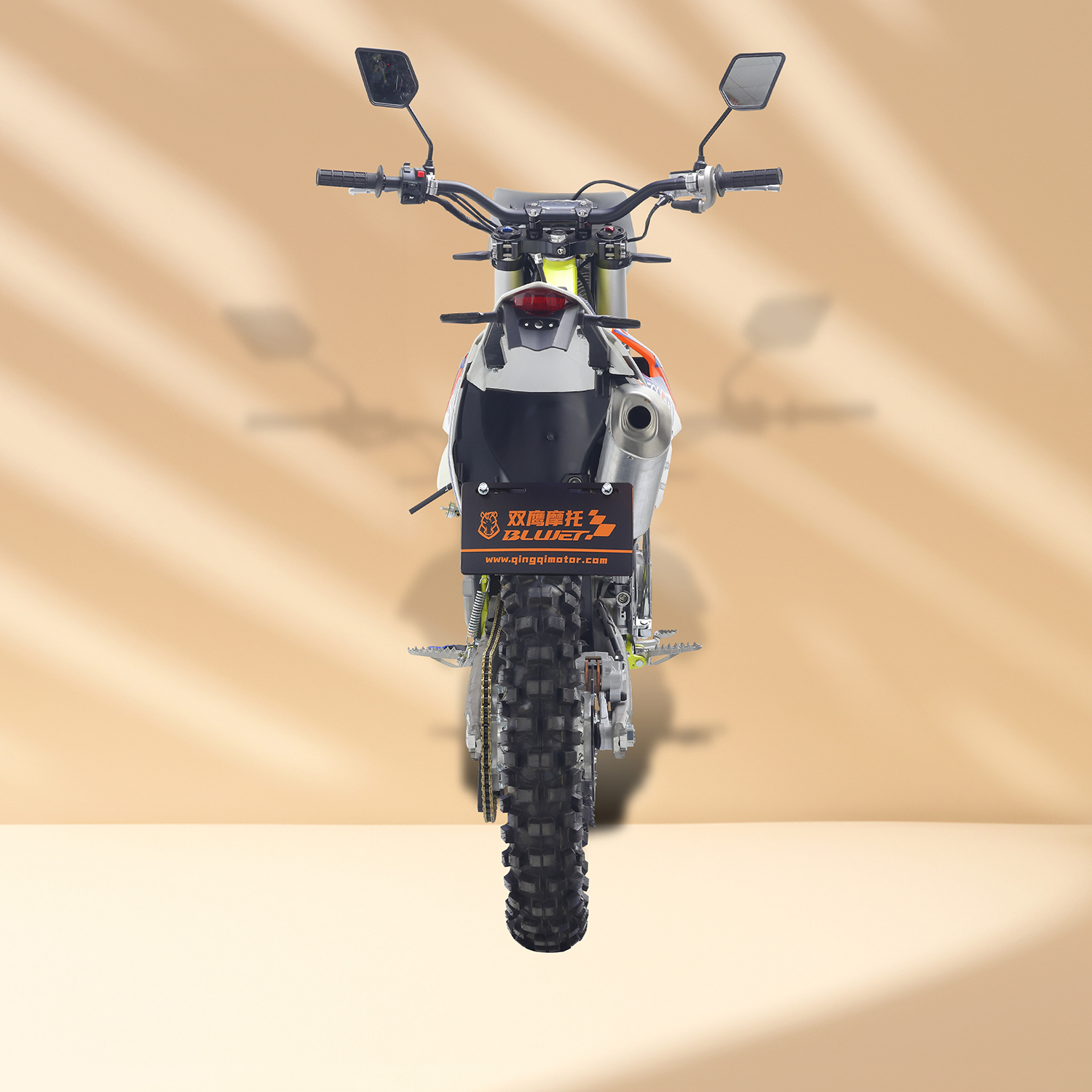

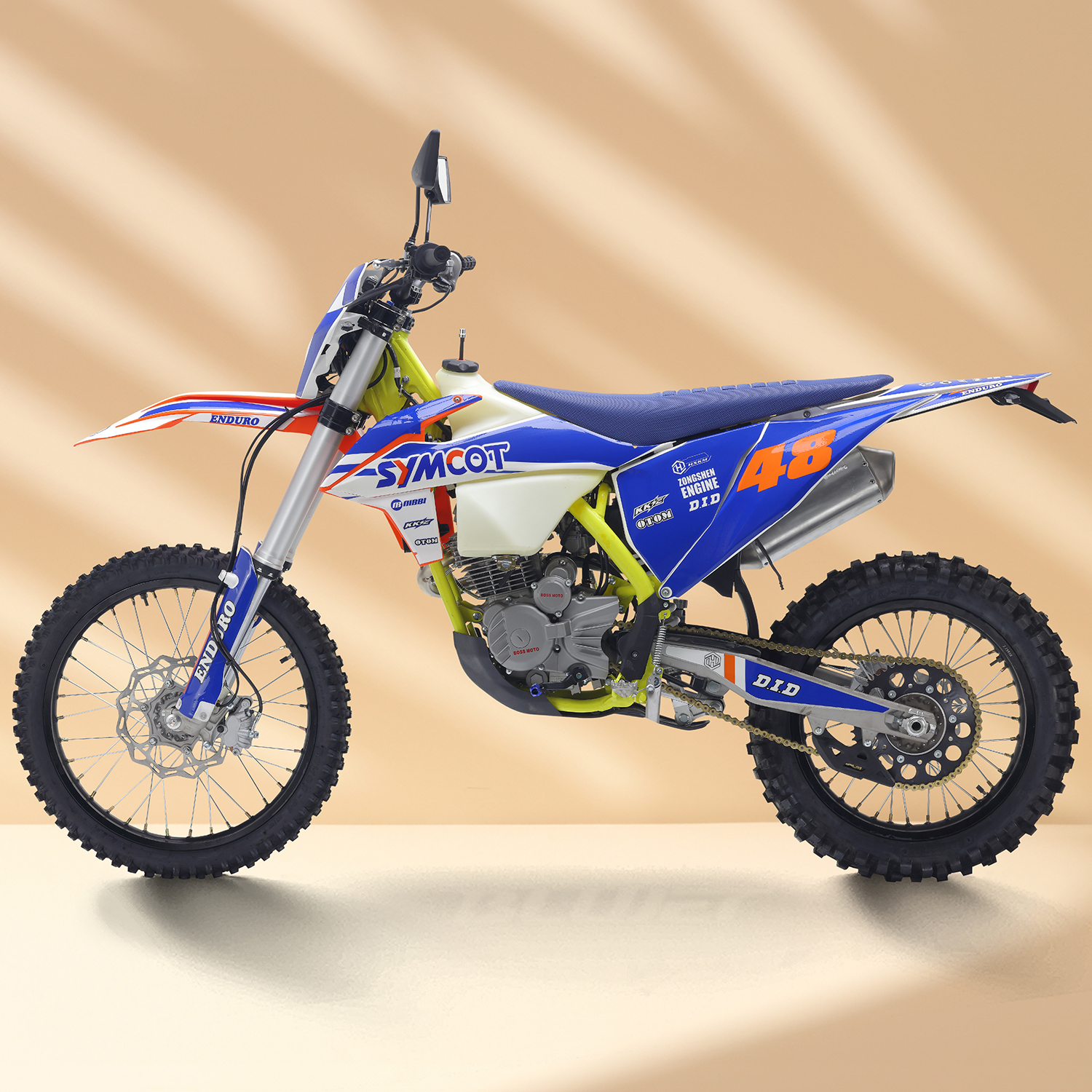

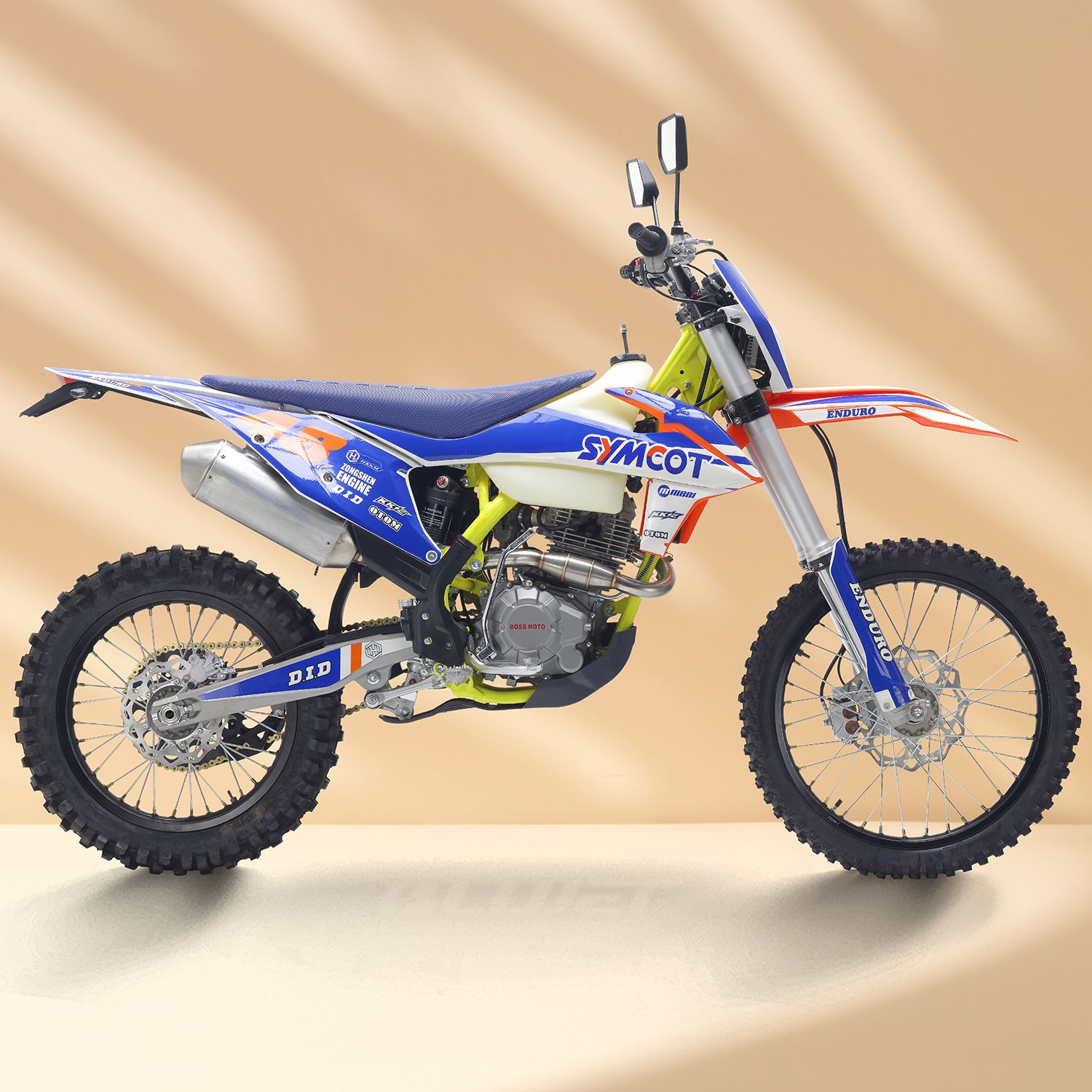

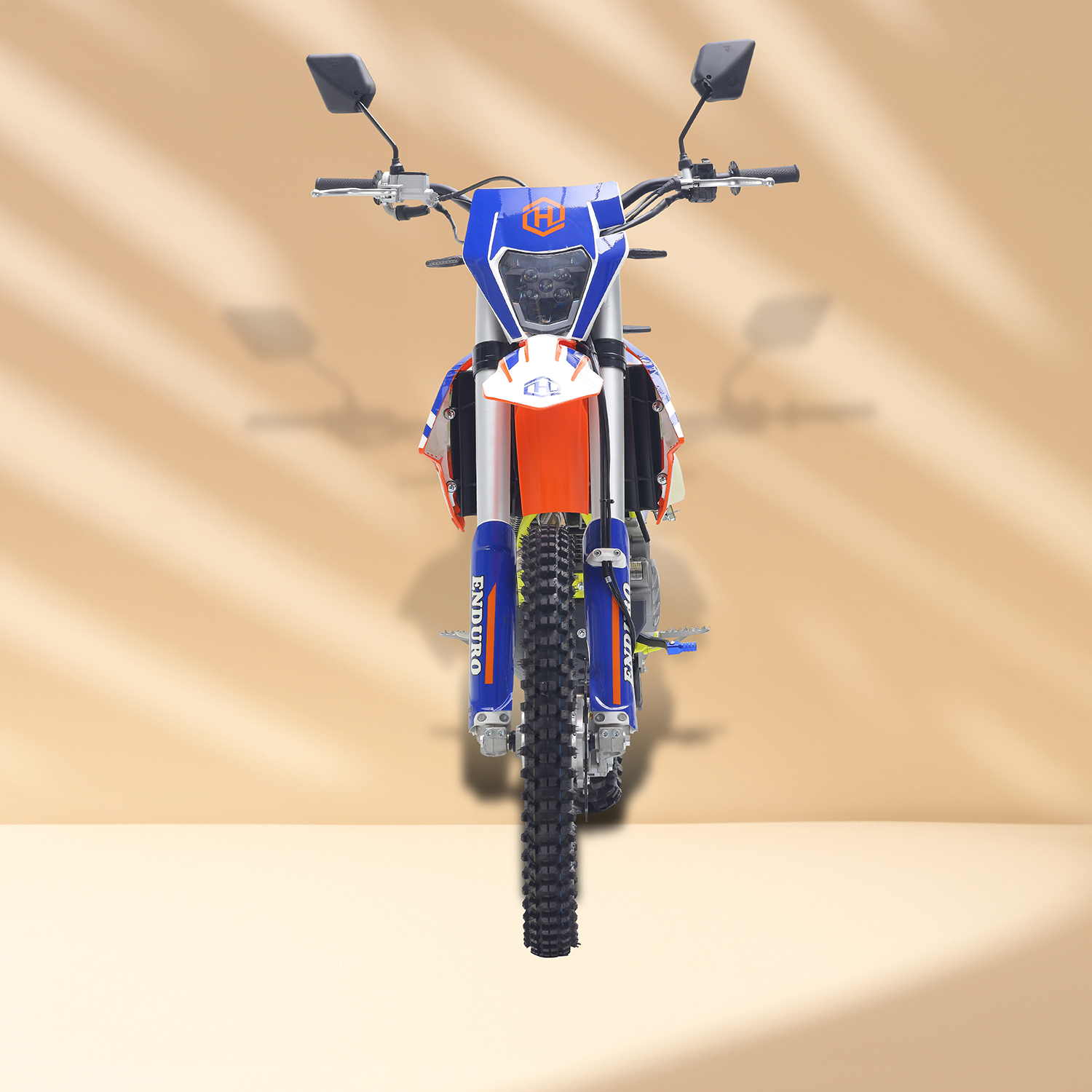

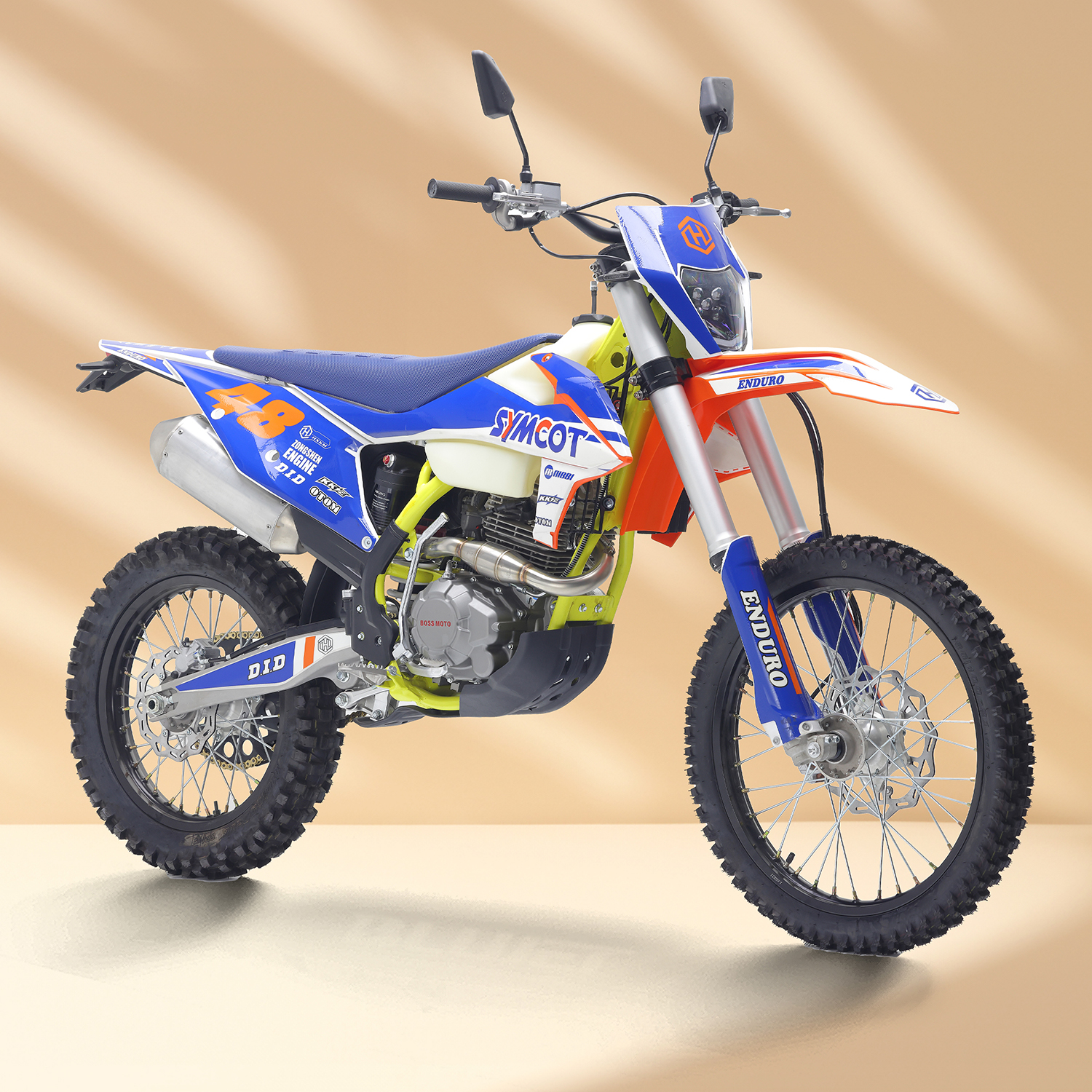

KTM 300
$1,400.00
Price drop reminder
- SKU： KTM300
- Product Code: KTM 300cc
- Availability: 1000
If the price of the product is reduced within 30 days, we will notify you via email, SMS and mobile client~
If the goods arrive within 30 days, we will notify you via email, SMS and mobile client~
<td class="xl70" style="padding-top: 1px; padding-right: 1px; padding-left: 1px; font-size: 12pt; font-weight: bold; font-family: Arial; vertical-align: middle; border-width: medium 0.5pt 0.5pt medium; border-style: none solid solid none;
| Dimension.(L×W×H)(mm) | 2200×850×1520 | ||
| Wheel base(mm) | 1570 | ||
| Ground (mm) | 350 | ||
| Seat height(mm) | 970 | ||
| Turning angle | ＜48° | ||
| Min turning radius(mm) | 2120 | ||
| Front/rear sprocket teeth | 16/50 | ||
| Gearshift | 5-forward | ||
| Fuel tank(L) | 9L | ||
| Fuel Type | Gasoline | ||
| Max. Load Capacity(kg) | 150 | ||
| Dead Weight(kg) | 132 | ||
| Max speed(km/h) | 107 | ||
| Displacement/Power(ml/kw): | 300cc | ||
| Eco fuel consumption(L/100km) | 3 | ||
| Brake Mode： | Front Wheel：Disc brake | ||
| Rear Wheel：Disc brake | |||
| Front Wheel: Hand | |||
| Brake Operation Mode | Rear Wheel: kick | ||
| Wheel Rim Type | Front spoke wheel: 1.85×21 | ||
| Rear spoke wheel: 2.15×18 | |||
| Tire type | With tube | ||
| Front tire | 80/100-21 | ||
| Rear tire | 110/100-18 | ||
| Head light | 12V 35W/35W | ||
| Winker | 12V 10W | ||
| Battery（mm） | jelly: 12V6.5A | ||
| Engine type | 1-Cylinder, 4-stroke, air-cool, OHC | ||
| Engine Model | ZSCBF250 | ||
| Start | Electric+kick | ||
| Ignition | CDI | ||
| Bore×Distance | 72x61.4 | ||
| Displacement(ml) | 249 | ||
| Compression rate | 9.25:1 | ||
| Magneto | 12V 8head full phase | ||
| Oil capacity(ml) | 1100 | ||
| Spark plug | D8TC | ||
| Spark clearance(mm) | 0.6~0.7 | ||
| Valve clearance(mm) | 0.04~0.06 | ||
| Lubriation | Press+splash | ||
| Carburetor | PZ30 | ||
| Transmission | Constant mesh | ||
| Clutch type | manual, wet, multi-disc | ||
| Initial trans rate | 3.333 | ||
| Gearshift rates | 1st gear ratio：3.083; 2nd gear ratio：2.063 ; 3rd gear ratio：1.45; 4th gear ratio：1.13; 5th gear ratio：0.957 6th gear ratio: 0.815 | ||
| Final trans | Chain | ||
| Rotation direction | Facing shaft, unclock wise | ||
| Size(mm) | 358×324×446 | ||
| N.W.(kg) | 35 | ||
| Max power | 15KW(8500r/min±5%) | ||
| Max torque | 18 N·m(7500r/min) | ||
| Loading qty SKD | 108 Units in 40HQ | ||
| Loading qty CKD | 150 Sets in 40HQ | ||
| Features | |||
| ZS CB300F (ZS172FMM-3A) | |||
| Carburetor Nibbi PE28(Sport version) | |||
| KKE Front shock absorbers 51/54 Φ41 Compression and rebound adjustment (900mm length). 250 stroke |
|||
| KKE Rear shock absorber. Length 465. stroke 110 Compression and rebound adjustment. External cylinder. |
|||
| Aluminum mulffer + Stainless steel pipe with power bomb |
|||
| Chinese Top Brand Disc brake RR & FR | |||
| Al-Alloy Shift lever | |||
| Colored forged aluminium alloy clamps | |||
| Aluminium alloy 6005 handlbar | |||
| Steel Blade rear swingarm | |||
| with linkage assy | |||
| Wheels: 21/18 aluminium alloy wheel. Rim Black with printing logo |
|||
| Tire：80/100-21；110/90-18 | |||
| Japanese Lintec rim stickers ( full size) for off-road big wheel rim |
|||
| Wheel lock (front and rear) | |||
| Colored aluminium alloy hub | |||
