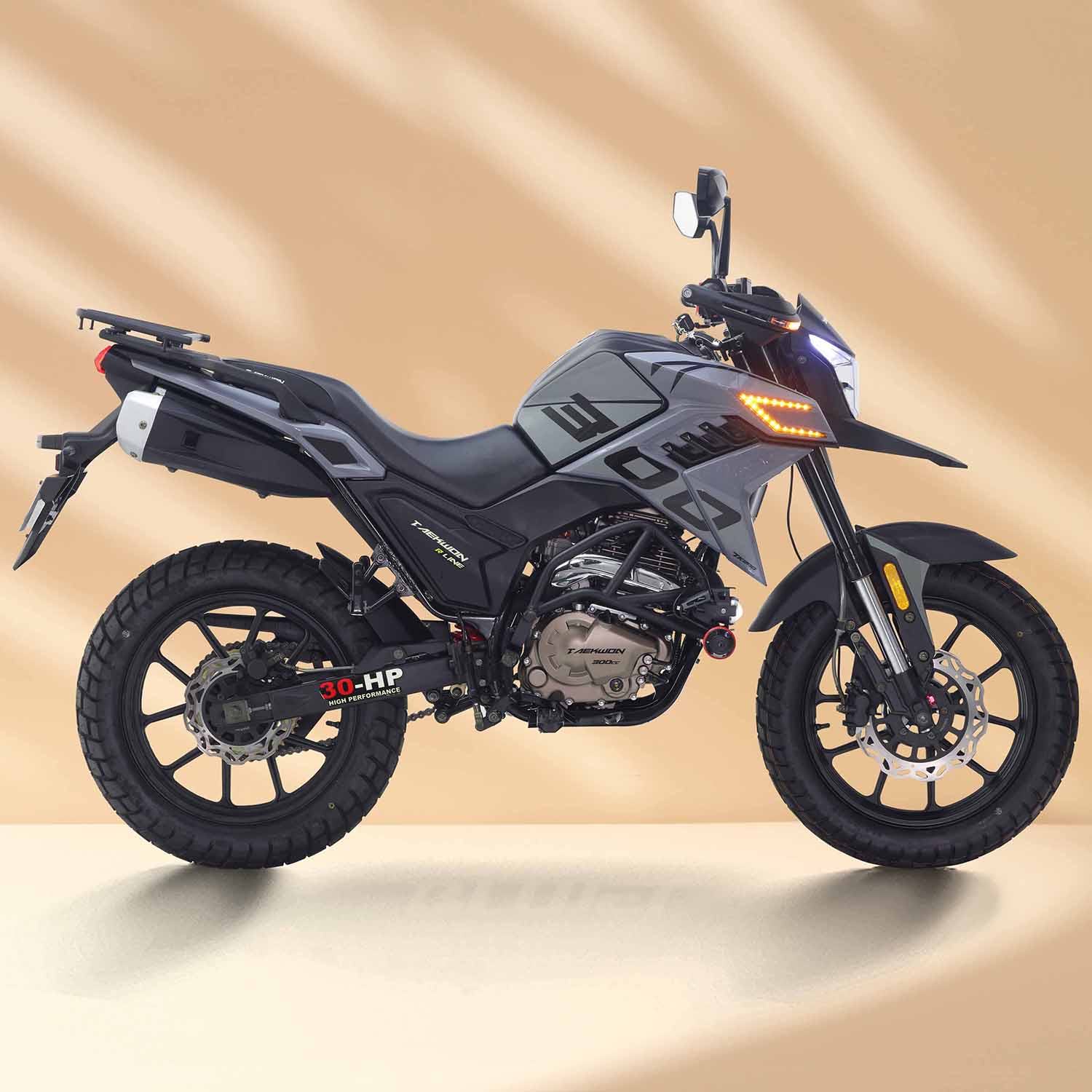

Tekken 300cc
$990.00
Price drop reminder
- SKU： Tekken300cc
- Product Code: Tekken 300cc
- Availability: 1000
If the price of the product is reduced within 30 days, we will notify you via email, SMS and mobile client~
If the goods arrive within 30 days, we will notify you via email, SMS and mobile client~
| Dimension.(L×W×H)(mm) | 2100×815×1270 | |
| Wheel base(mm) | 1360 | |
| Ground (mm) | 260 | |
| Seat height(mm) | 820 | |
| Turning angle | ＜48 degree | |
| Min turning radius(mm) | 2120 | |
| Front/rear sprocket teeth | 16/50 | |
| Gearshift | 6-forward | |
| Fuel tank(L) | 9L | |
| Fuel Type | Gasoline | |
| Max. Load Capacity(kg) | 150 | |
| Dead Weight(kg) | 144 | |
| Displacement/Power(ml/kw): | 271cc | |
| Eco fuel consumption(L/100km) | 3.0L | |
| Brake Mode： | Front Wheel | Disc brake |
| Rear Wheel | Disc brake | |
| Front Wheel | Manual | |
| Brake Operation Mode | Rear Wheel | kick |
| Wheel Rim Type | Front spoke wheel: 1.85*17 | |
| Rear spoke wheel: 2.15*17 | ||
| Tire type | With tube | |
| Front tire | 4.60-17 | |
| Rear tire | 5.10-17 | |
| Head light | 12V 35W/35W | |
| Winker | 12V 10W | |
| Battery（mm） | With acid: 12V7A | |
| Engine type | 1-Cylinder, 4-stroke, oil-cool, OHC,inner balance | |
| Engine Model | ZS175YMV | |
| Start | Electric+kick | |
| Ignition | CDI | |
| Bore×Distance | 75×61.4 | |
| Displacement(ml) | 271 | |
| Compression rate | 9.3：1 | |
| Magneto | 12V 8head full phase | |
| Oil capacity(ml) | 1100 | |
| Spark plug | D8EA（NGK） | |
| Spark clearance(mm) | 0.6~0.7 | |
| Valve clearance(mm) | 0.04~0.06 | |
| Lubriation | press+splash | |
| Carburetor | PZ32 | |
| Transmission | Constant mesh | |
| Clutch type | Manual, multi-disc | |
| Initial trans rate | 3.333 | |
| Gearshift rates | 1st: 3.1 2nd: 2.0 3rd: 1.400 4th 1.10，fifth: 0.90 6th: 0.8 | |
| Final trans | Chain | |
| Rotation direction | Facing shaft, unclock wise | |
| Size(mm) | 388×324×446 | |
| N.W.(kg) | 35 | |
| Max power | 16KW(8000r/min±5%) | |
| Max torque | 22N·m(6500r/min) | |
| Load Quantity CKD | 40HQ | 126 sets |
| Load Quantity SKD | 40HQ | 93 units |
| Price CKD | USD870 | ALUMINUM WHEEL |
| Price CKD | USD880 | SPOKE WHEEL |

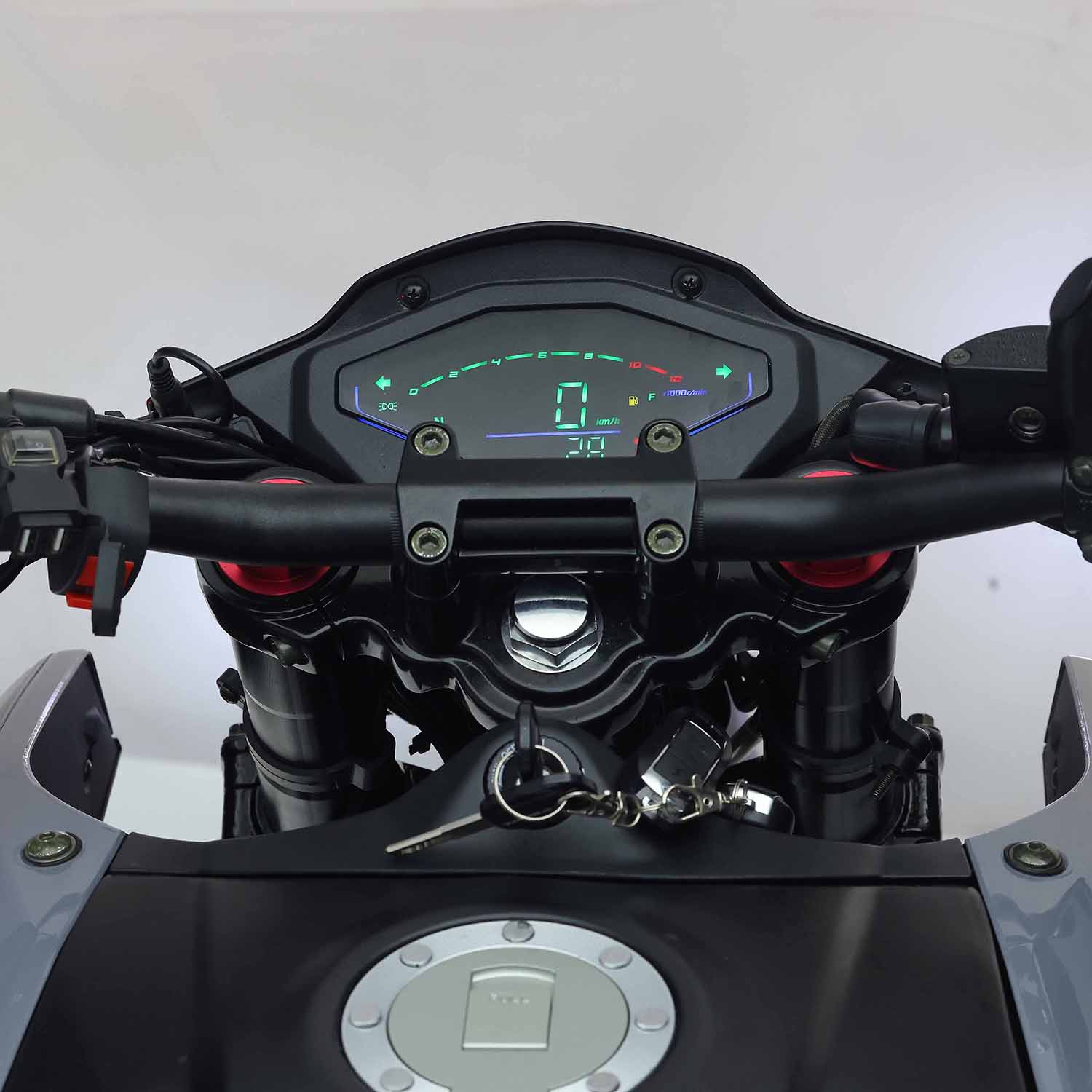

| Features | Digital Meter | |
| LED light | ||
| Revert front shock | ||
| 3.25/18, 4.60-17 offroad tire optional | ||
| With bumper | ||
