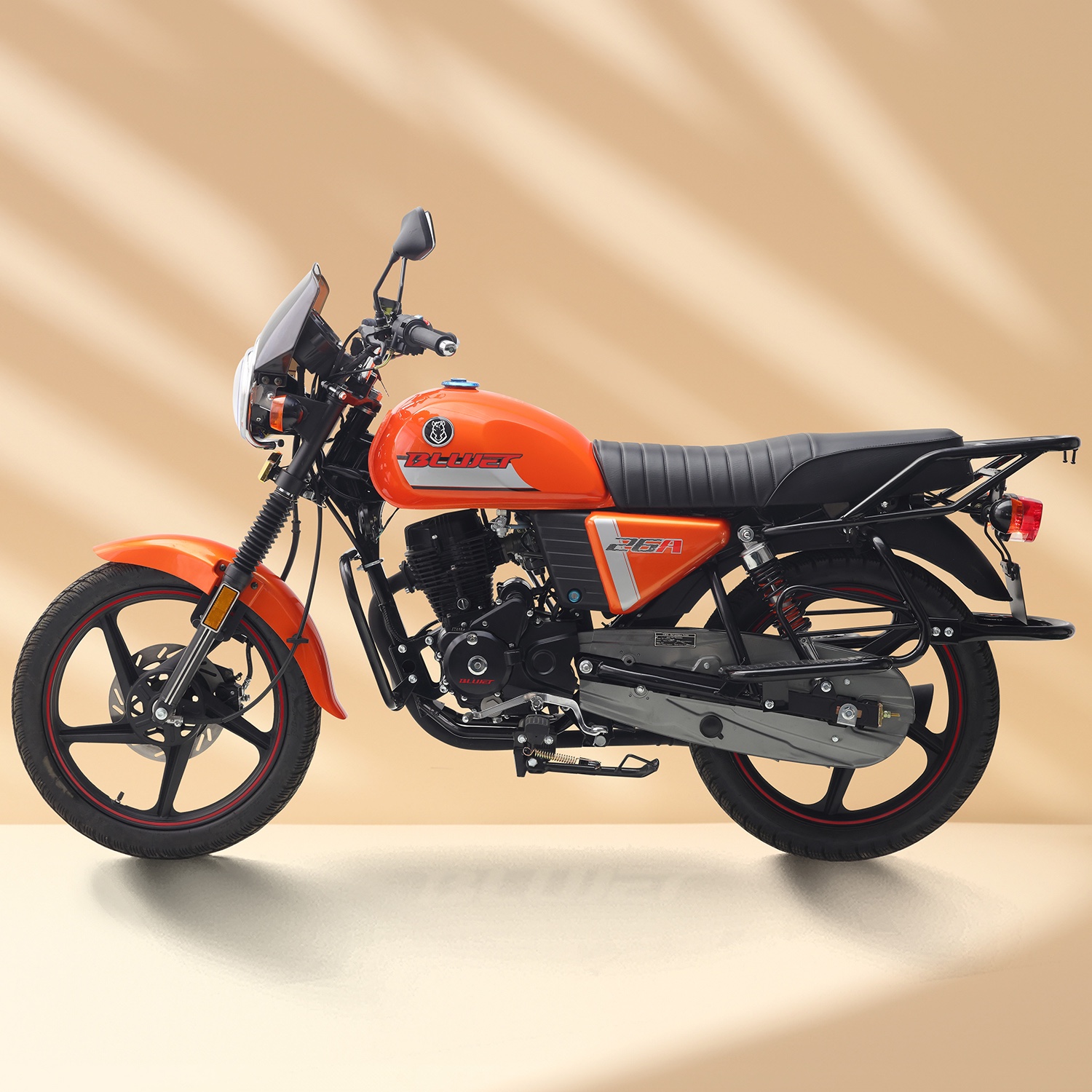

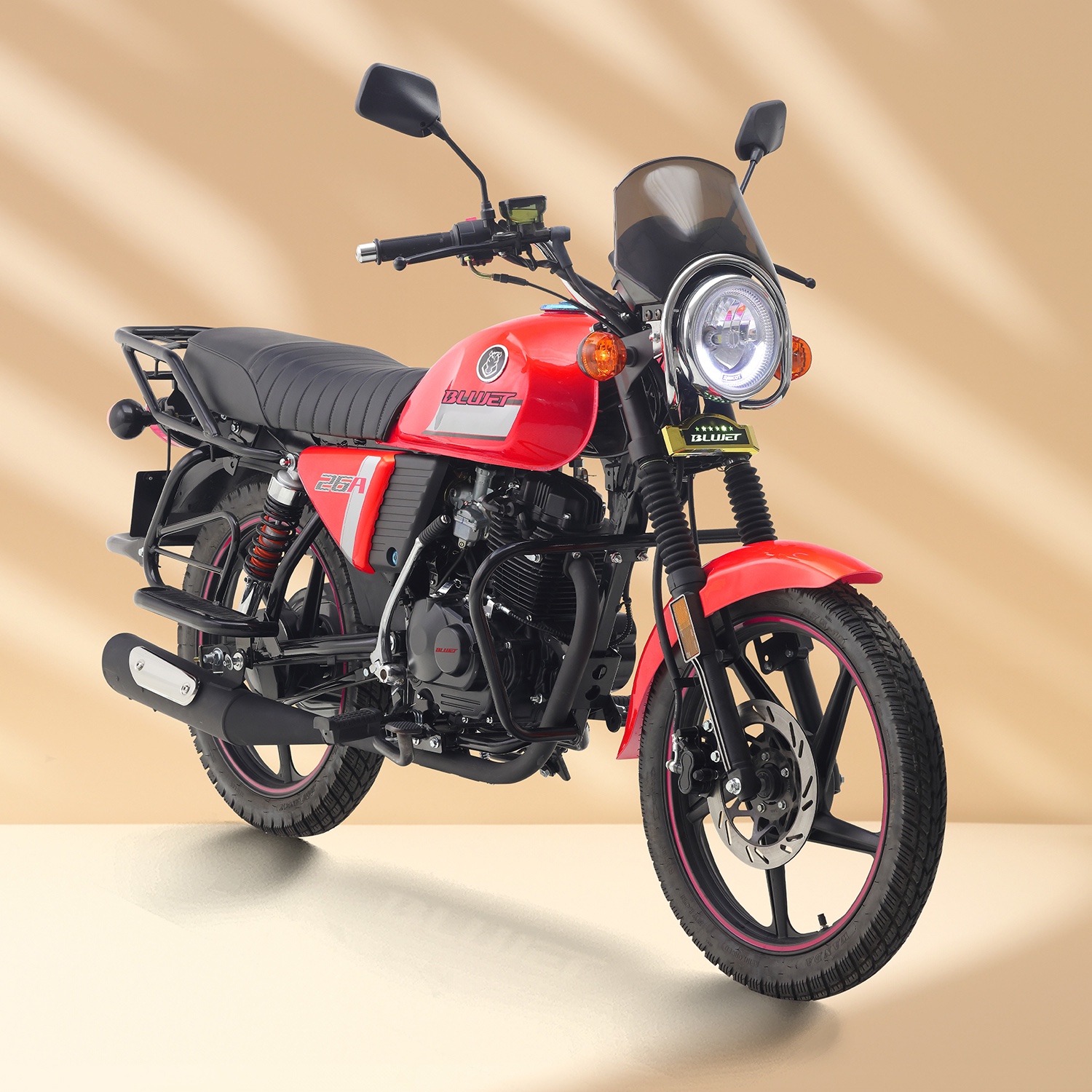

Boxer 200 2026
$580.00
Price drop reminder
- SKU： Boxer2002026
- Product Code: Boxer 200 2026
- Availability: 1000
If the price of the product is reduced within 30 days, we will notify you via email, SMS and mobile client~
If the goods arrive within 30 days, we will notify you via email, SMS and mobile client~
| Dimension.(L×W×H)(mm) | 2016×740×1055 |
| Wheel base(mm) | 1285 |
| Ground (mm) | 190 |
| Seat height(mm) | 780 |
| Turning angle | ＜48° |
| Min turning radius(mm) | 2040 |
| Front/rear sprocket teeth | 15/42 |
| Gearshift | 5-forward |
| Fuel tank(L) | 11L |
| Fuel Type | Gasoline |
| Max. Load Capacity(kg) | 150 |
| Dead Weight(kg) | 109 |
| Displacement/Power(ml/kw): | 200cc |
| Eco fuel consumption(L/100km) | 2.5L |
| Brake Mode： | Front Wheel:Drum brake |
| Rear Wheel:Drum brake | |
| Front Wheel | |
| Brake Operation Mode | Rear Wheel |
| Wheel Rim Type | Front aluminum wheel: 1.60×17 |
| Rear aluminum wheel: 1.85×17 | |
| Tire type | With tube |
| Front tire | 3.00-17 |
| Rear tire | 100/90-17 |
| Head light | 12V 35W/35W |
| Winker | 12V 10W |
| Battery（mm） | Jelly battery 12N6.5AH 150×60×130 |
| Engine type | 1-Cylinder, 4-stroke, air-cool, with balancer |
| Engine Model | 163FML |
| Start | Electric+kick |
| Ignition | CDI |
| Bore×Distance | 63.5*62.2 |
| Displacement(ml) | 197 |
| Compression rate | 9.2：1 |
| Magneto | 12V 8head full phase |
| Oil capacity(ml) | 1100 |
| Spark plug | D8EA（NGK） |
| Spark clearance(mm) | 0.6~0.7 |
| Valve clearance(mm) | 0.04~0.06 |
| Lubriation | press+splash |
| Carburetor | PZ30, KEIHIN |
| Transmission | Constant mesh |
| Clutch type | Manual, multi-disc |
| Initial trans rate | 3.333 |
| Gearshift rates | 1st: 2.769 2nd: 1.882 3rd: 1.400 4th 1.130，fifth: 0.960 |
| Final trans | Chain |
| Rotation direction | Facing shaft, unclock wise |
| Size(mm) | 388×324×446 |
| N.W.(kg) | 33 |
| Rated power | 10.5KW(7500r/min±5%) |
| Max power | 12.8KW(8000r/min±5%) |
| Max torque | 16.5N·m(5500r/min) |
| Load Quantity | 40HQ:175 sets in CKD |
| Load Quantity | 40HQ: 105 sets in SKD(double package) |
