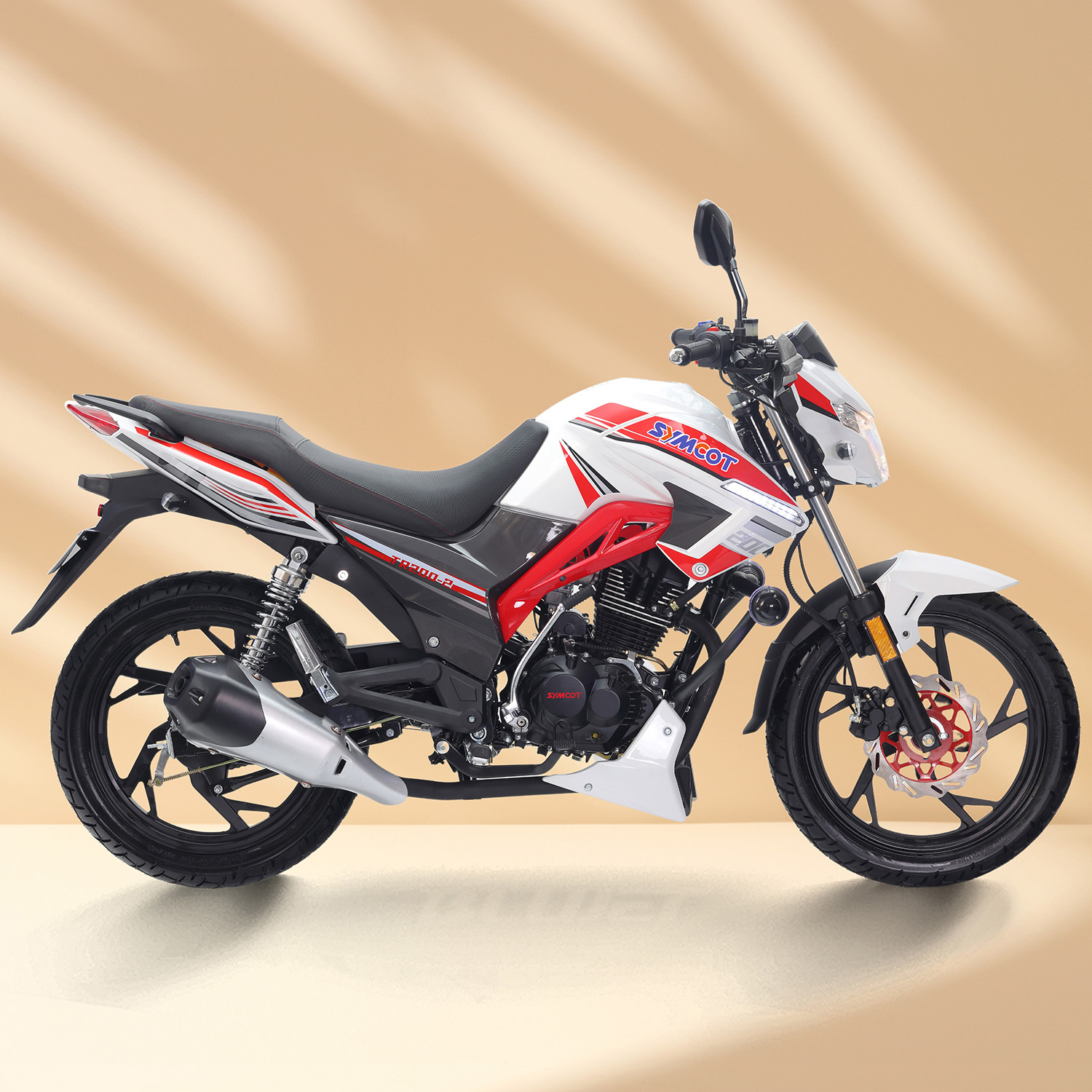

AK150
$650.00
Price drop reminder
- SKU： AKM42024
- Product Code: AK150
- Availability: 1000
If the price of the product is reduced within 30 days, we will notify you via email, SMS and mobile client~
If the goods arrive within 30 days, we will notify you via email, SMS and mobile client~
| Model： | AK150 |
| Dimension.(L×W×H)(mm) | 2000×760×1050 |
| Wheel base(mm) | 1356 |
| Min ground clearance (mm) | 142 |
| Seat height(mm) | 830 |
| Turning angle | ＜48° |
| Min turning radius(mm) | 2120 |
| Front/rear sprocket teeth | 17/42 |
| Gearshift | 5-forward |
| Fuel tank(L) | 15L |
| Fuel Type | Gasoline |
| Max. Load Capacity(kg) | 150 |
| Dead Weight(kg) | 132 |
| Displacement/Power(ml/kw): | 150㏄ |
| Eco fuel consumption(L/100km) | 2.1 |
| Brake Mode： | Front Wheel: Disc |
| Rear Wheel: Drum | |
| Front Wheel: Hand | |
| Brake Operation Mode | Rear Wheel: Kick |
| Wheel Rim Type | Front aluminum wheel: 1.60×17 |
| Rear aluminum wheel: 2.10×17 | |
| Tire type | With tube |
| Front tire | 90/80-17 |
| Rear tire | 120/70-17 |
| Head light | 12V 35W/35W |
| Winker | 12V 10W |
| Battery（mm） | Maintenance Free: 12V9AH 114×71×106 |
| Engine type | 1-Cylinder, 4-stroke, air-cool, OHC |
| Engine Model | SY162FMJ-B |
| Start | Electric+kick |
| Ignition | CDI |
| Bore×Distance | 62×49.5 |
| Displacement(ml) | 144.6 |
| Compression rate | 8.6:1 |
| Magneto | 12V 8head full phase |
| Oil capacity(ml) | 1100 |
| Spark plug | D8TC |
| Spark clearance(mm) | 0.6~0.7 |
| Valve clearance(mm) | 0.04~0.06 |
| Lubriation | Press+splash |
| Carburetor | PZ27 |
| Transmission | Constant mesh |
| Clutch type | manual, wet, multi-disc |
| Initial trans rate | 3.333 |
| Gearshift rates | 1st: 2.769 ,2nd: 1.882,third; 1.400,forth: 1.130,fifth: 0.960 |
| Final trans | Chain |
| Rotation direction | Facing shaft, unclock wise |
| Size(mm) | 358×324×446 |
| N.W.(kg) | 31 |
| Rated power | 8.5KW(8500r/min±5%) |
| Max power | 9.6KW(9500r/min±5%) |
| Max torque | 9.5N·m(7500r/min) |
| Load Quantity | 40HQ: 105 units |
